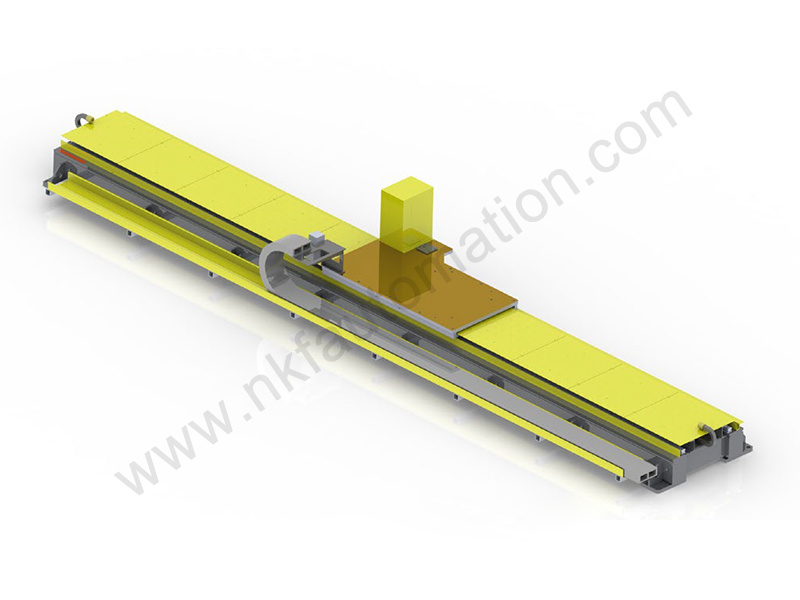

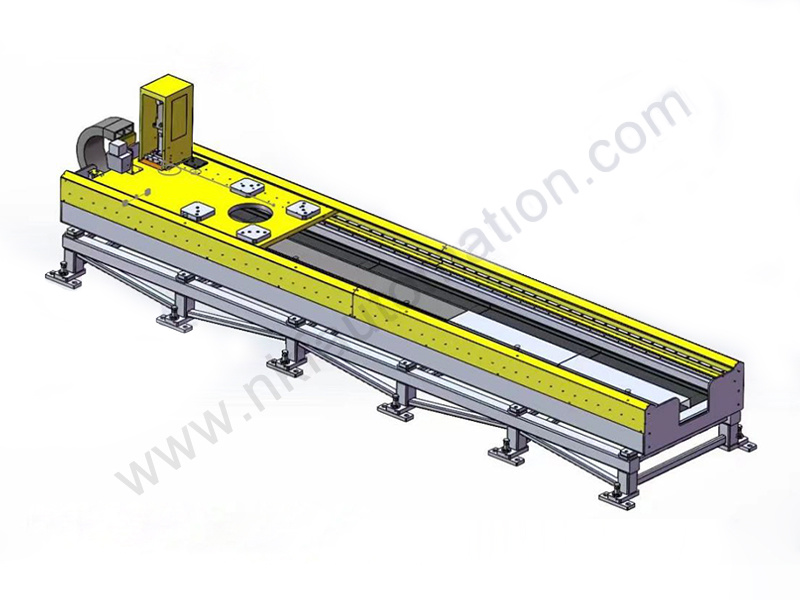

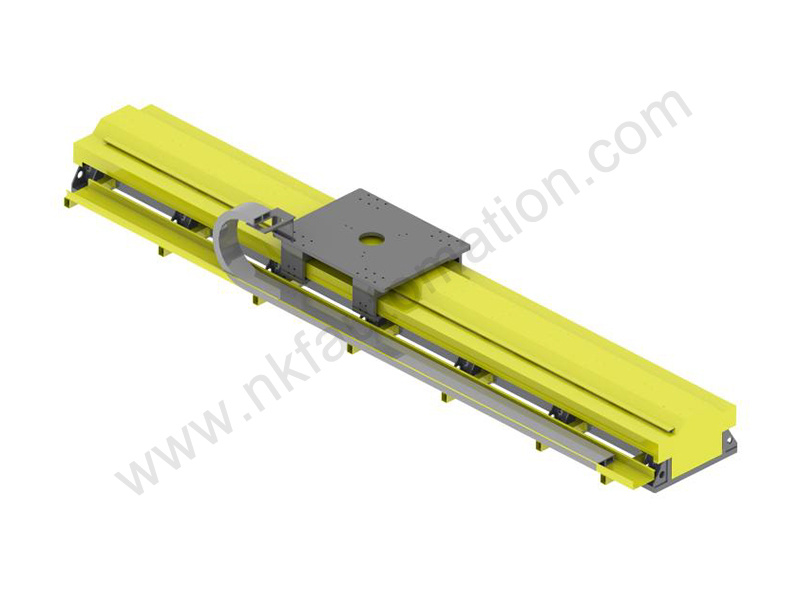

Commodity name: Middle Payload Ground Linear Rail Technical Specification

Model: AUT-SW-X-Z-M-XXX

Technical Parameters (The overall Dimensions and Data of The Equipment shall be subject to the STEP drawings finally Confirmed by Both Parties)

No.	Items	Specification	Notes
1.	Product Name	Single axis servo linear rail on the ground	Middle Payload
2.	Main Application	Welding, handling loading
3.	Model	AUT-SW-X-Z-M-length
4.	Controlled Axis Number	Single axis (X direction)
5.	Control mode	Electric Control Based on Precision AC Servo Motor
6.	Installation form	Front Installation on the ground
7.	Drive mode	Gear wheel and gear rack drive
8.	Gear wheel and gear rack form	Precision helical gear
9.	Guidance mode	Linear guide rail and sliding table
10.	Reducer	Precision planetary reducer
11.	Reducer speed ratio	i=10
12.	Repeat positioning accuracy	±0.10mm
13.	Moving speed	0-60000mm/min
14.	Effective stroke	Total length-1400mm
15.	Effective installation dimension of sliding table	900mm×750mm(L×W)
16.	Maximum load	Total Payload≤3000kg Robot end payload≤300kg
17.	Overall dimensions	Total length×1270mm×900mm(Shield height)
18.	Drag chain position	Inside/Outside(Drag chain 45×75+45×75)
19.	Weight	Lenght×300kg/meter+420kg(Sliding table assembly)
